How to configure Site to site vpn between azure to on premise



Step by Step How to Configure Site-to-Site VPN Microsoft Azure to FortiGate

How to configure site-to-site VPN between Azure cloud and Fortigate firewall, we use below point.

• Creating the Microsoft Azure virtual network
• Creating the Microsoft Azure virtual network gateway
• Creating the Microsoft Azure Local network gateway
• Creating the VPN Connection
• Configuring the FortiGate tunnel
• Creating the FortiGate firewall addresses
• Creating the FortiGate firewall policies
• Connectivity Test

Create the Virtual Networks -

we can follow below steps -

1- create virtual network

• Subscription: Select your active subscription.
• Resource group: Select an existing resource group or we can create a new resource group.
• Name: We have to provide a meaningful name for the virtual network.
• Region: Select the nearest Region.

Add Subnet: The subnets address range in CIDR 10.0.0.0/24

Now review request and create virtaul network

Go to resource button to navigate to the virtual network interface.

 Now Virtual Network Gateway --

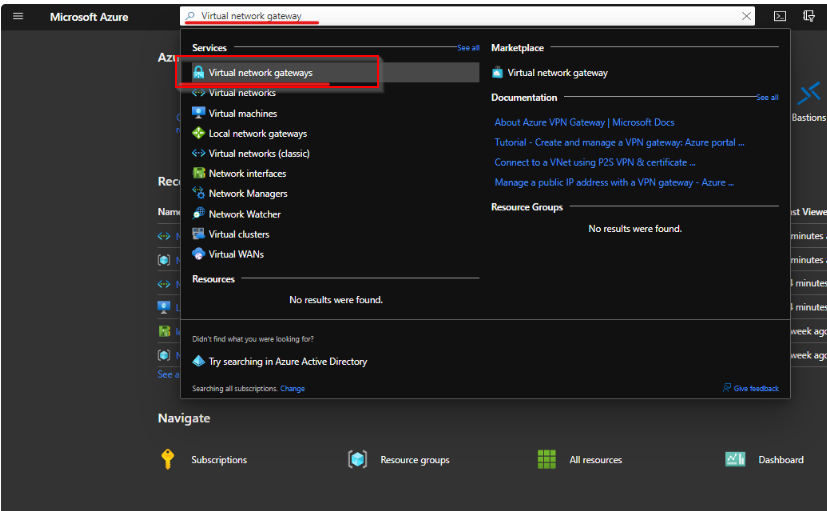

-->> Search Virtual network gateway and click on the search result Virtual network gateway

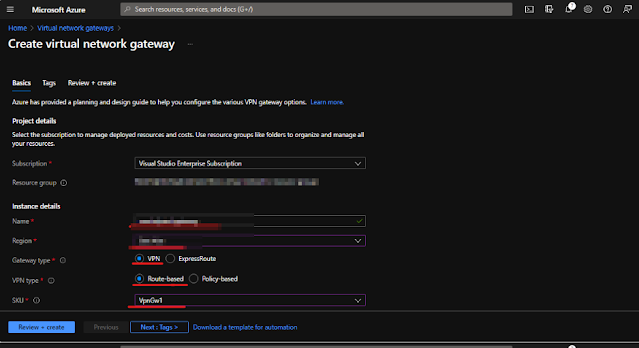

-->> Basics tab and then provide the below details as your wish ---

• Name: We have to provide a name that matches the name of our new virtual network.
• Gateway type: Select VPN.
• VPN type: Select Route-based VPN.
• SKU: Select Basic, as it fits the requirements of most SMBs (Server Message Blocks).

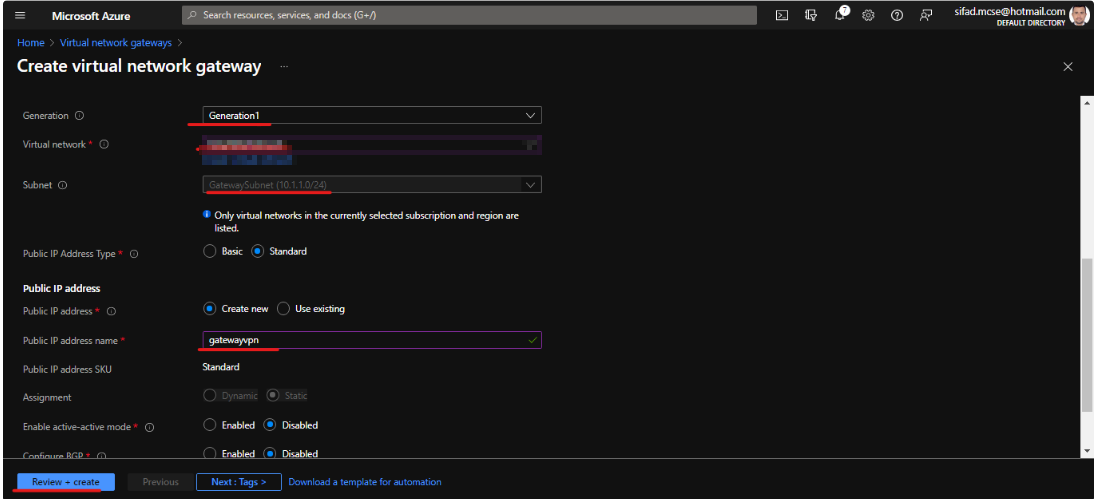

• Virtual network: Choose the Virtual Network that we created.
• Public IP address: Create a new public IP address, give it a meaningful name

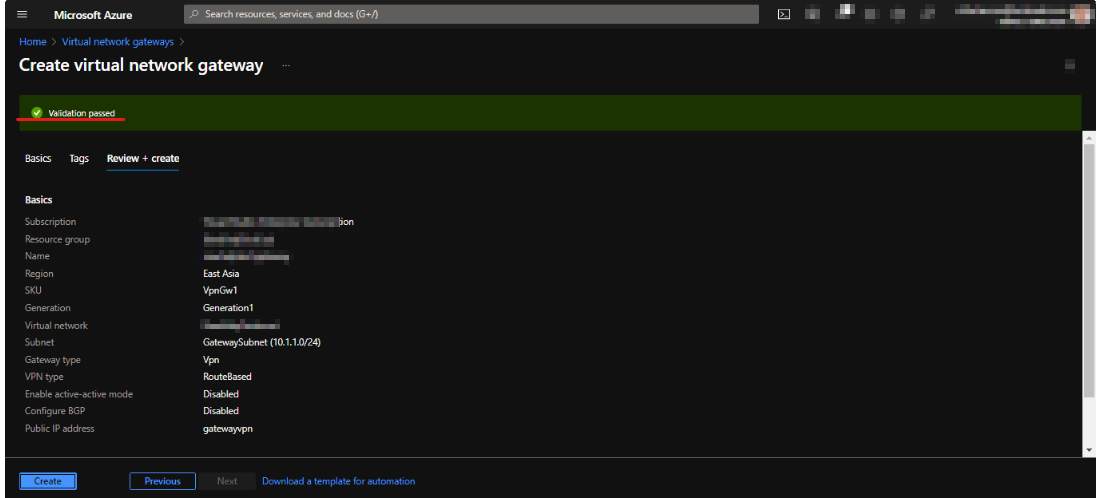

Now validate the process and create -

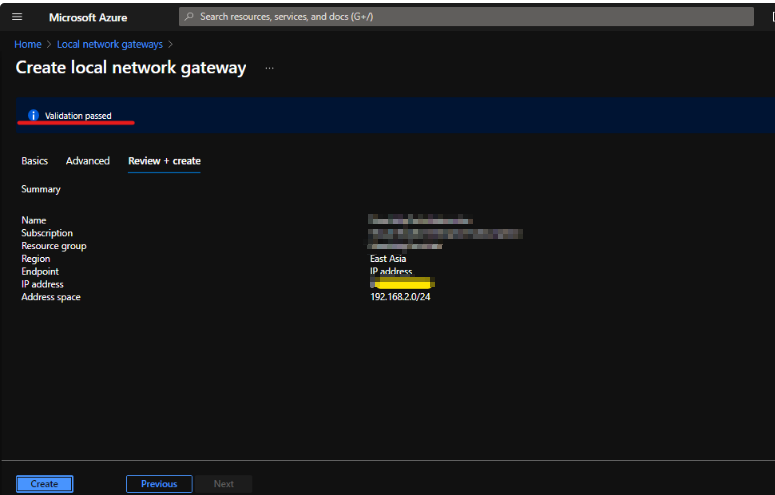

Now create Create the Local Network Gateway --

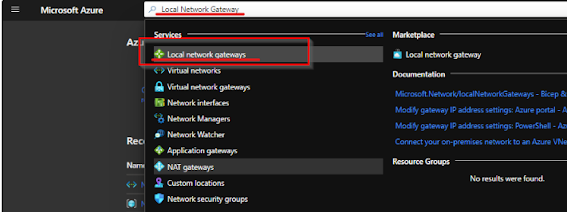

We should create another interface to represent Our  local on-premises network , now seach  Local Network Gateway

Create a Site-to-Site VPN between Azure to FortiGate

Virtual network gateways interface then click on the Connections tab

• Name: Provide a name related to the Azure Virtual network that you are creating.
• Connection type: From the drop-down, select Site-to-Site (IPSec).
• Local network gateway: Select the Local network gateway that we created.
• Shared key (PSK): Provide a complex string and save it securely. You must provide this key on your on-premises  firewall.

Now we can configure Fortigate Firewall

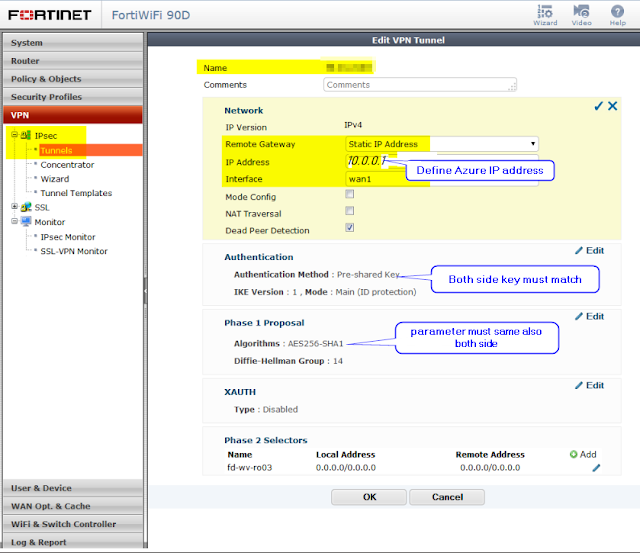

On-Prem FortiGate Firewall configuration   ----------          -------------------

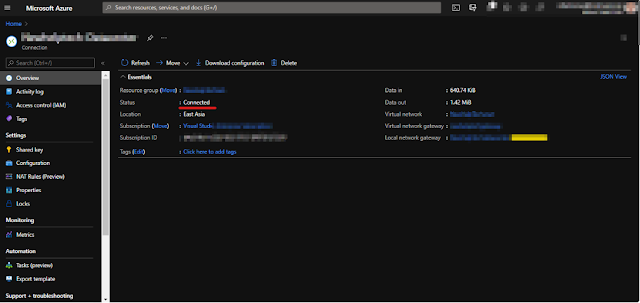

now check traffic and status on Azure and try to ping Azure ip from ONpremise
